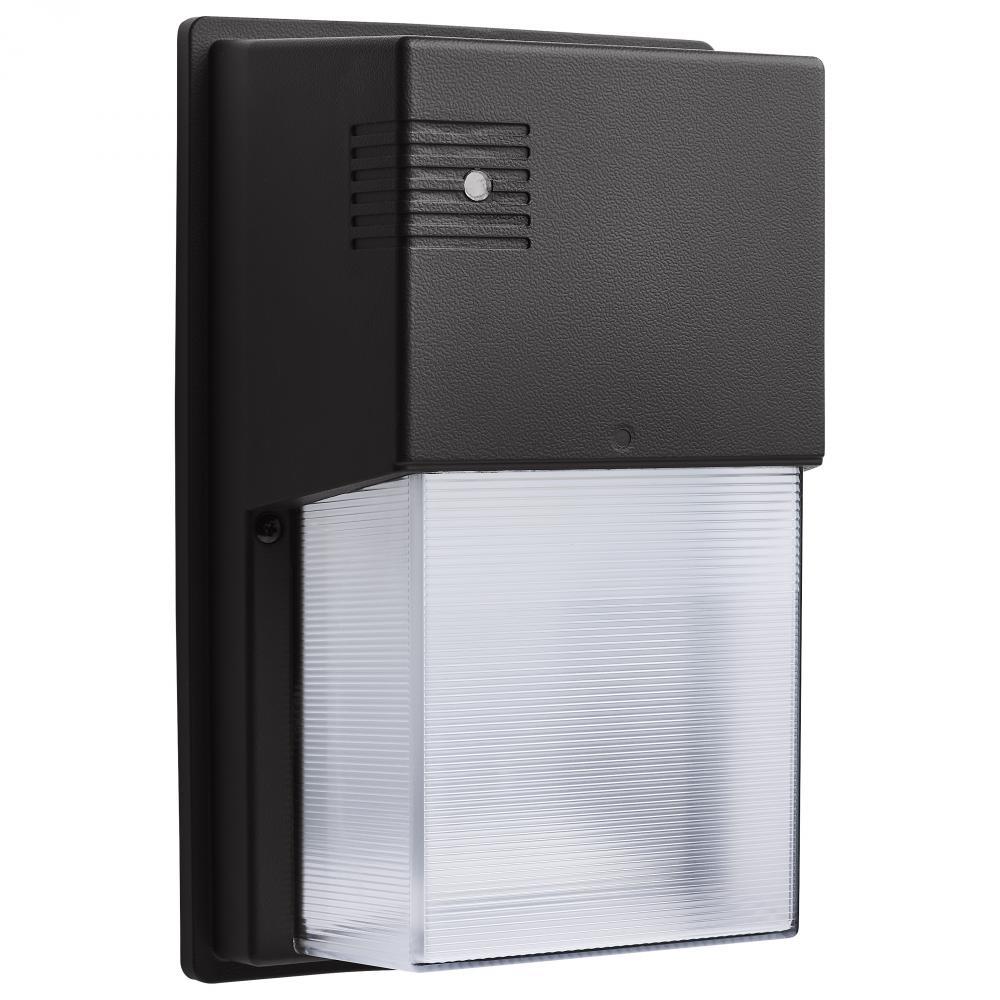

LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; Bronze Finish (A9CDM)
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A9CDM
Dimensions:
Height: 10.96"
Width: 6.86"
Bronze
Availability:
- Manufacturer has 162 items available.
Recommended Items
Description
Details
Downloads
LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; Bronze Finish
Option:
LED
, Prop 65
Category:
Wall Pack
Sub Category:
Standard
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
5
Each Length:
7.5
Each Width:
11.5
Lumens:
1410L-2839L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.083-0.029/0.125-0.043/0.167-0.058A
ANSI Base:
Integrated
Beam Angle:
100
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.2496
Each Quantity:
1
Efficacy:
141.00/141.63/141.95 LPW
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 2:
Bronze Die-Cast Aluminum
Feature 3:
0-10V dimming
Feature 4:
IP65 and IK08 Vandal Resistant
Feature 5:
Wet location rated
Feature 6:
B1-U3-G3 Rating
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Finish Family:
Bronze
Flicker Free:
No
Flr Equiv:
42W
HID Equiv:
100W
Impact Rating (IK):
IK08
Incandescent Equivalent:
150W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Prismatic
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-986 bronze LED entryway wall pack offers a sleek and versatile solution for outdoor lighting. Designed with a durable die-cast aluminum construction and an IK08 polycarbonate lens, this fixture ensures reliable performance in demanding
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Has Photocell
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
11
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Elevate the lighting of your entryways with SATCO|NUVO's premium LED wall packs that combine durability, versatility, and style. Featuring an integrated by passable photocell, these fixtures are crafted with robust die-cast aluminum construction and a
Safety Listing:
cULus
Short Description:
LED ENTRYWAY WALL PACK
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
2.64
