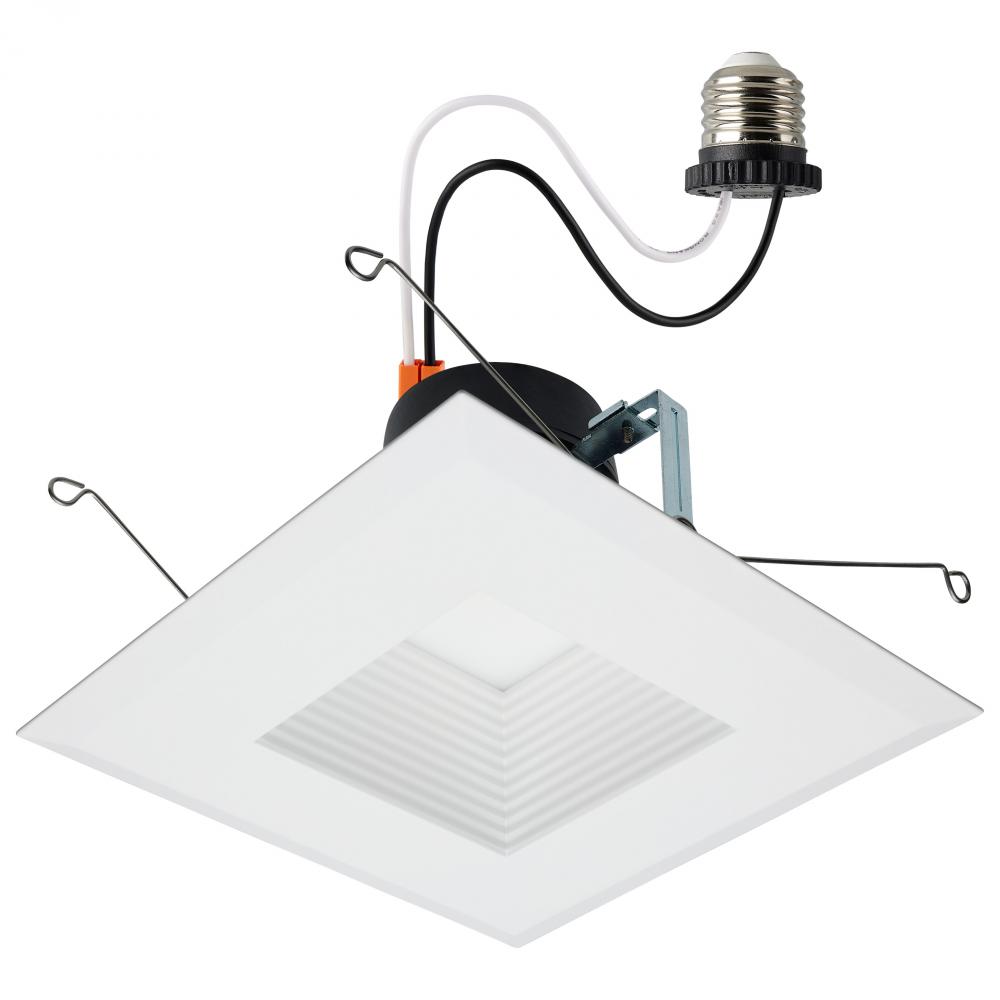

Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; (X6T01)
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6T01
Dimensions:
Height: 4.21"
Width: 7.13"
White
Availability:
- Manufacturer has 247 items available.
Recommended Items
Description
Details
Downloads
Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; 5-6 Inch; Square Shape; White Finish; 120 Volts
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star
, LED
, Prop 65
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Length:
7.13
Lumens:
800L/1000L/1200L
Ship Carton Height:
8.460000000000001
Ship Carton Length:
7.28
Ship Carton Width:
4.41
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.071/0.092/0.115A
ANSI Base:
E26 Adapter
Beam Spread:
80
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.1572
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.00 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
100.00/95.24/88.89 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-3354724
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 2:
Stepped Baffle for Reduced Glare
Feature 3:
Dimmable
Feature 4:
E26 Adapter Included
Feature 5:
90 CRI
Feature 6:
Wet location rated
Feature 7:
Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements
Feature 8:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Square
IC Rated:
No
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's S11885 5/6-inch square field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
0.96
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enha
Safety Listing:
cETLus - Classified
SDS class:
LED_Fixture
Short Description:
13.5WLED/DLR/5-6/WS/5CCT/SQ/DB
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<25%
Trim Color:
White
Wattage Selectable:
Yes
Weight Lb.:
0.8
