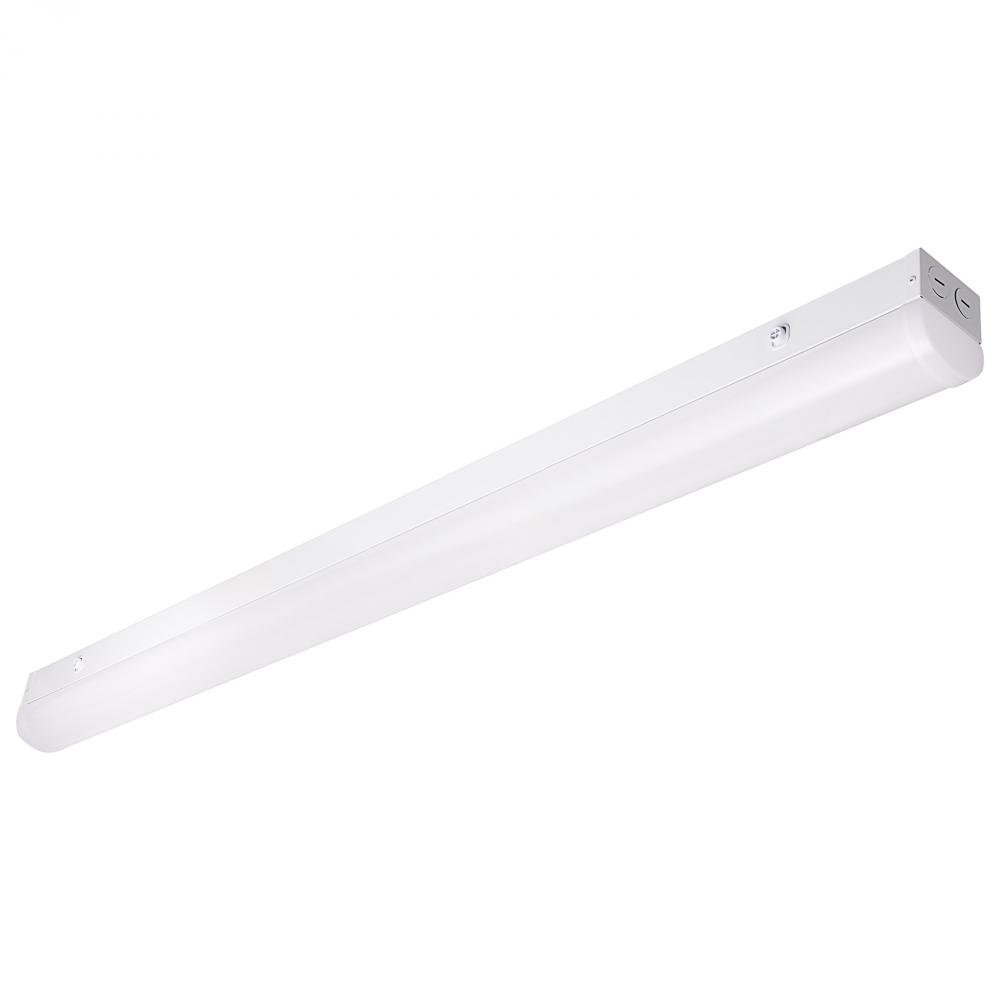

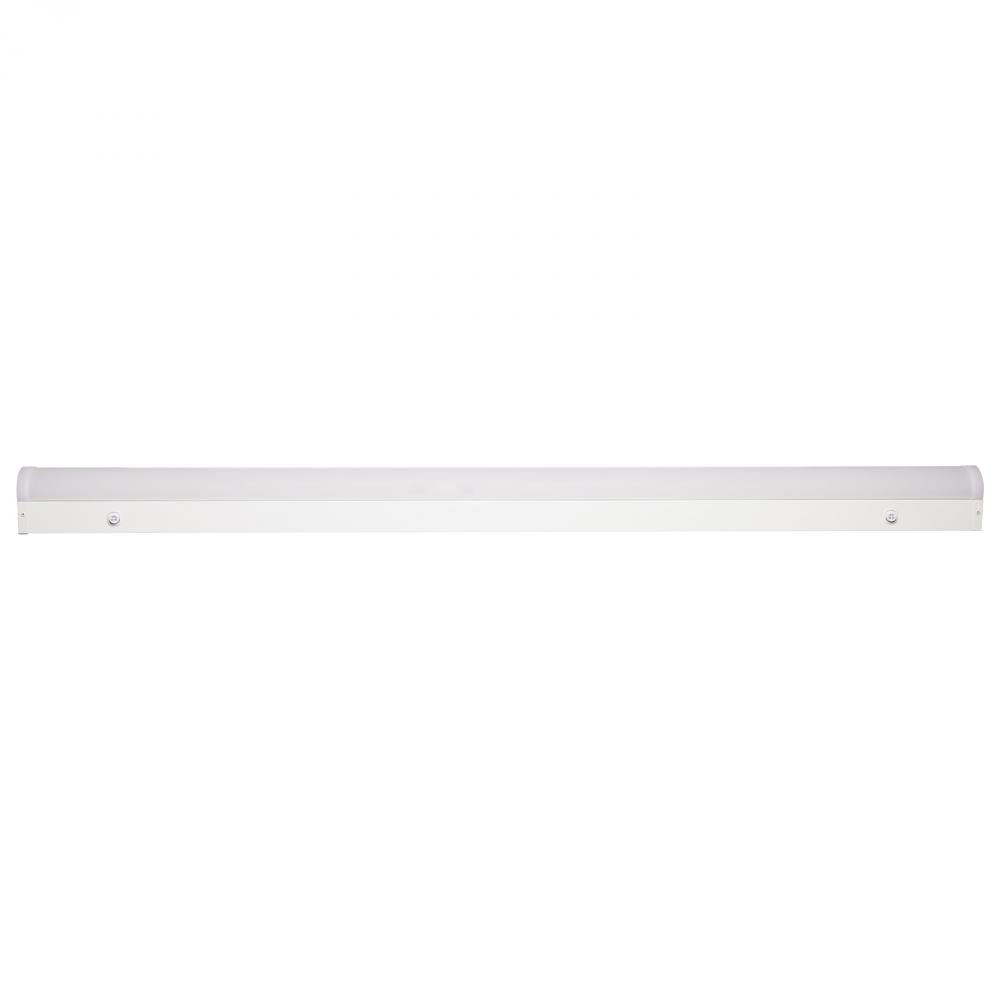

4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor (A97H8)
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A97H8
Dimensions:
Height: 3.27"
Width: 2.95"
White
Availability:
- Manufacturer has 219 items available.
Recommended Items
Description
Details
Downloads
4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor
Category:
Undercabinet
Subcategory:
LED Undercabinet Lights
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
5501-6000
Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Additional Info:
Other DLC Listings: S-5A4OGI, Standard, Direct Linear Ambient Luminaires; S-GB3EIK, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings.
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.38
Each Length:
50.08
Each Width:
5.13
Length:
48
Lumens:
3900L-6750L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B2-U4-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Standard; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
Each Cube:
0.7999
Each Quantity:
1
Efficacy:
130.00/133.13/135.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable (Wattage and CCT)
Feature 2:
Flicker Free Driver
Feature 3:

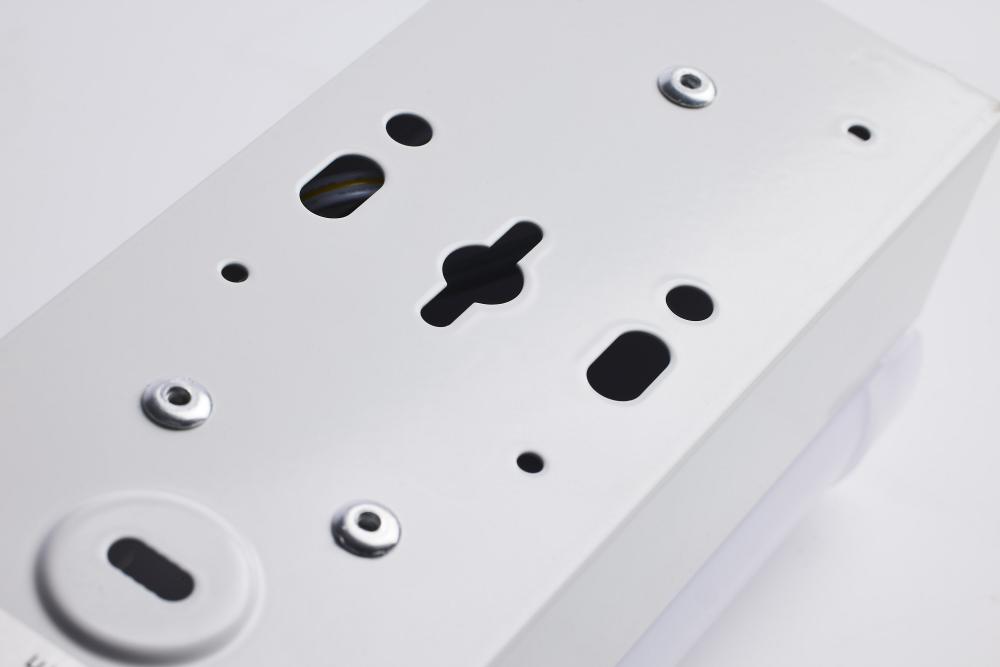

Multiple Mounting Options
Feature 4:
4-Foot, Integrated Microwave Sensor Model
Feature 5:

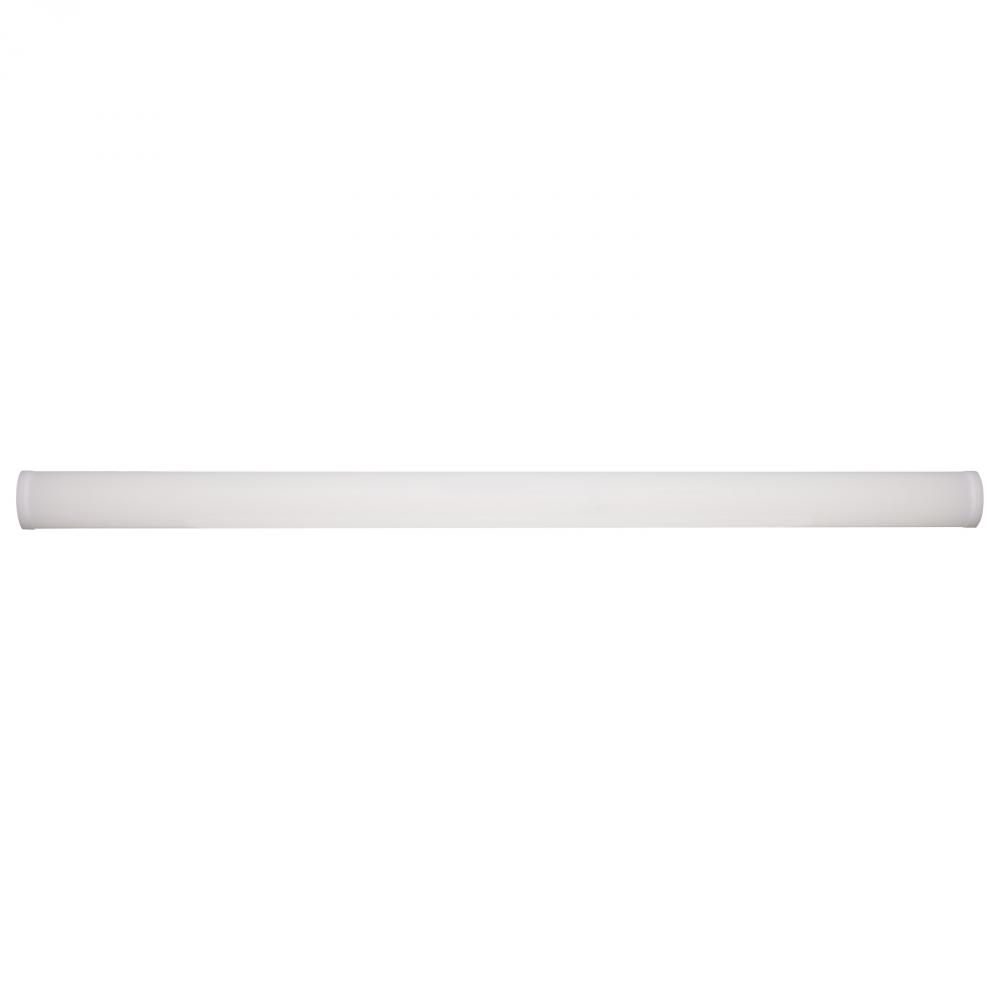

Durable, Polycarbonate Lens
Feature 6:
Damp location rated
Feature 7:
Numerous Accessories Available (Sold Separately)
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
100W-150W
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-1701 4-foot LED Linear Strip Fixture offers adaptable lighting for diverse applications. This field-selectable fixture provides wattage options of 30W, 40W, or 50W and color temperature settings of 3500K, 4000K, or 5000K. With a univers
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Bi-Level Microwave Sensor
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes, providing versatile lighting solutions for a range of applications. All fixtures are CCT selectable with 3500K, 4000K, and 5000K options, allowing users to adjust the color temperature
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Sensor Type:
Microwave
Short Description:
4' LINEAR STRIP W/SENSOR
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
10.71%
Wattage Selectable:
Yes
Weight Lb.:
3.56
