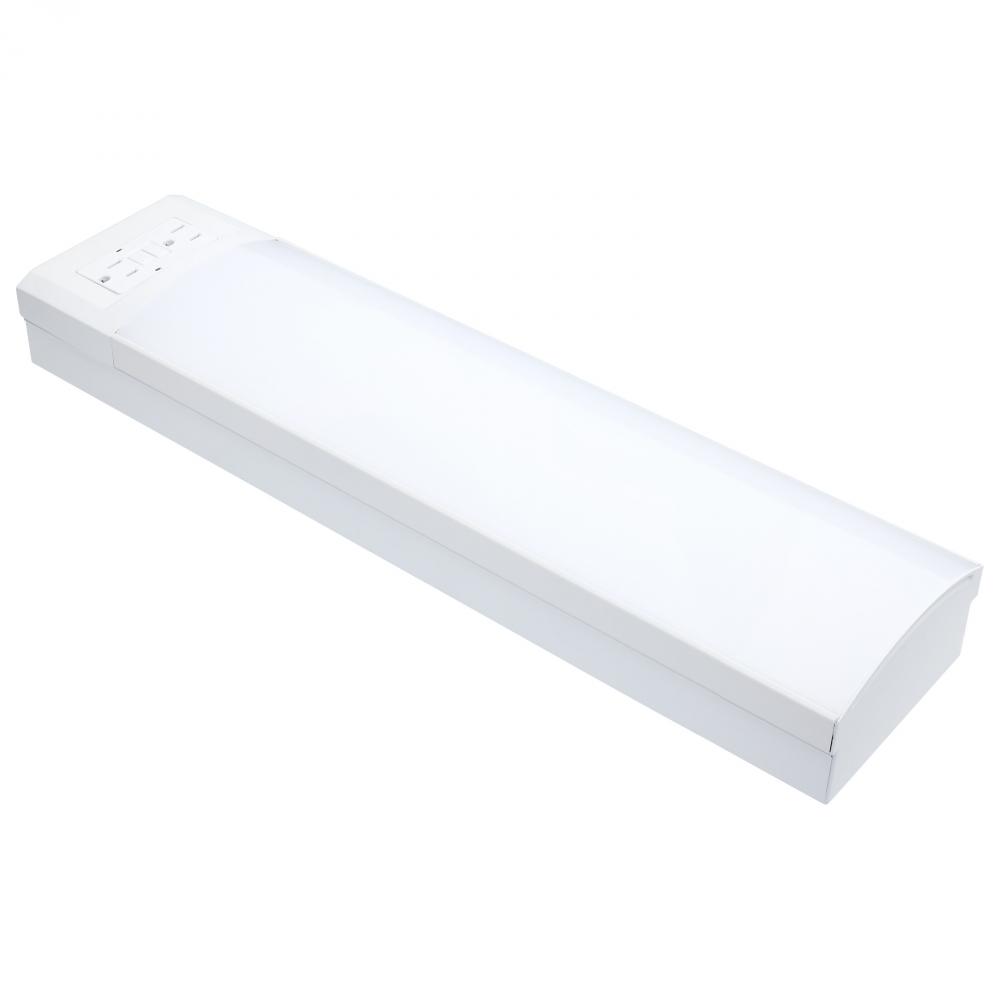

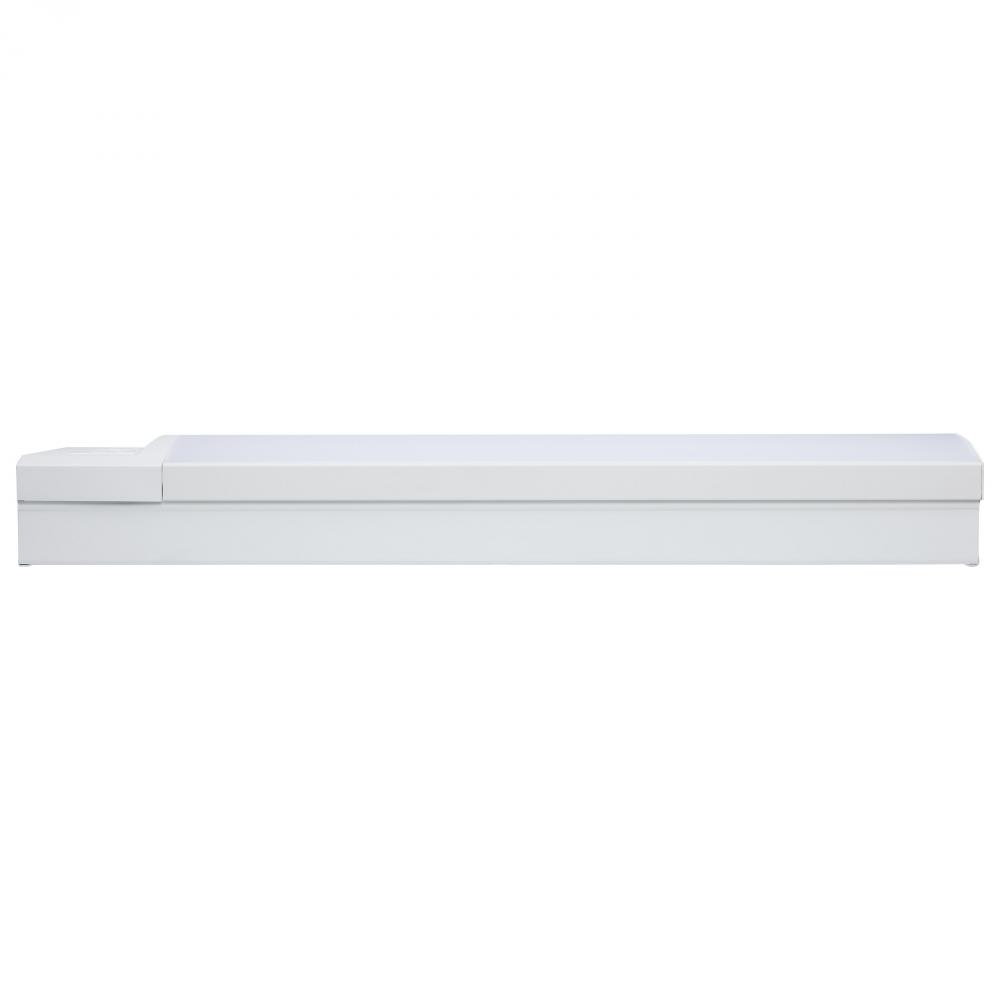

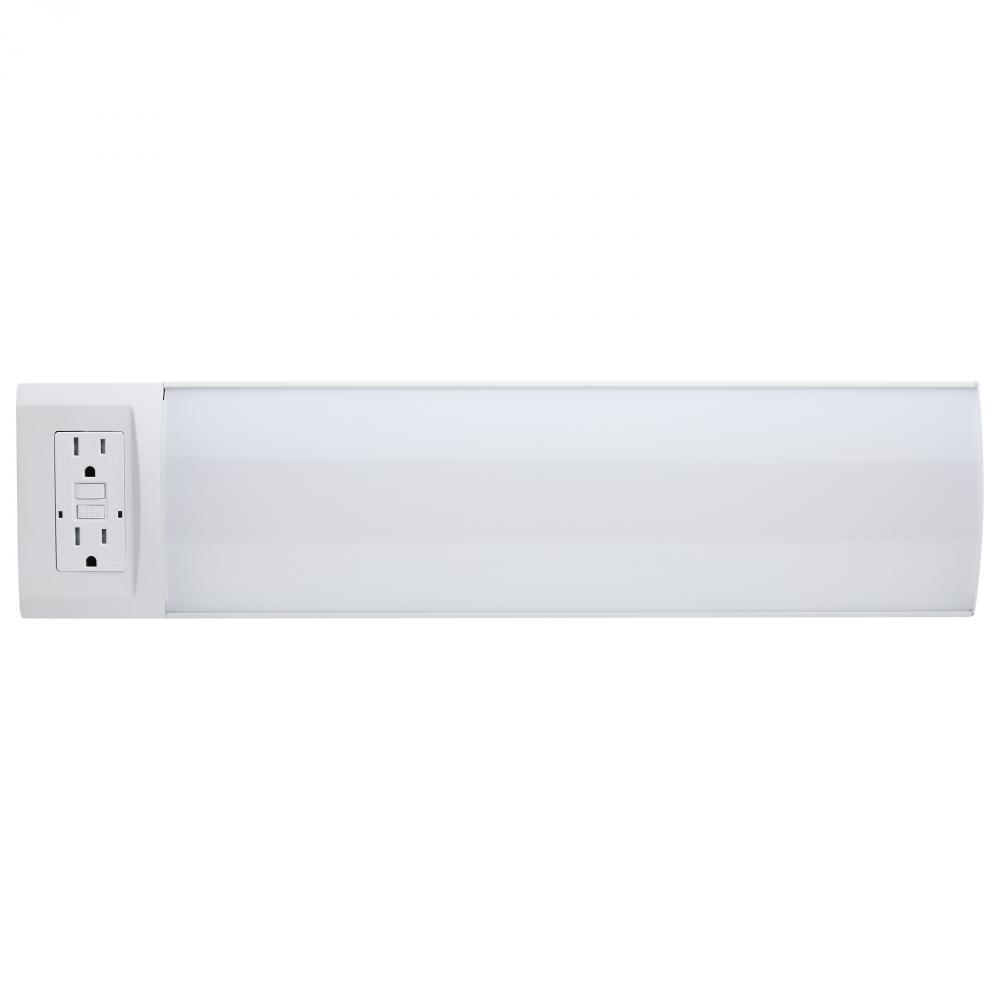

14 Watt 18 Inch LED Ceiling Wrap; Dual GFCI; 27K/30K/35K/40K/50K CCT Selectable (A9CCW)
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A9CCW
Dimensions:
Width: 4.40"
White
Availability:
- Manufacturer has 463 items available.
Recommended Items
Description
Details
Downloads
14 Watt 18 Inch LED Ceiling Wrap; Dual GFCI; 27K/30K/35K/40K/50K CCT Selectable
Option:
LED
, Prop 65
Category:
Linear Strip
Sub Category:
Wrap Fixture
Bulb Volts1:
120V
Additional Info:
Tamper Resistant Dual GFCI Outlet with 15 amp circuit with 14 gauge wire; 0.025 second GFCI Trip Time; The outlet is front facing, It has an easy to read diagnostic indicator; Built in protection against shock; Most used application for this product would
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Non-Dimmable
Each Height:
4.65
Each Length:
18.31
Each Width:
2.76
Length:
18
Lumens:
1298L-1391L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.117A
ANSI Base:
Integrated
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
90
Each Cube:
0.136
Each Quantity:
1
Efficacy:
92.71-99.36 LPW
FCC Compliant:
Yes
Feature 1:
Integrated 15-Amp Convenience Outlets
Feature 2:

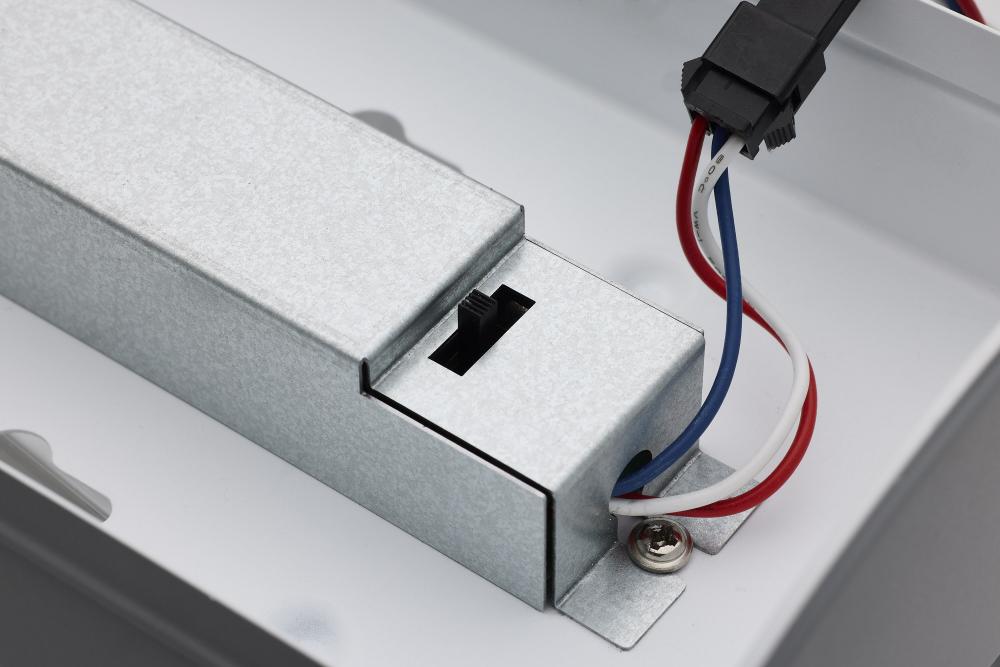

5 CCT Selectable
Feature 3:
90 CRI High Quality Light
Feature 4:
ADA Compliant
Feature 5:

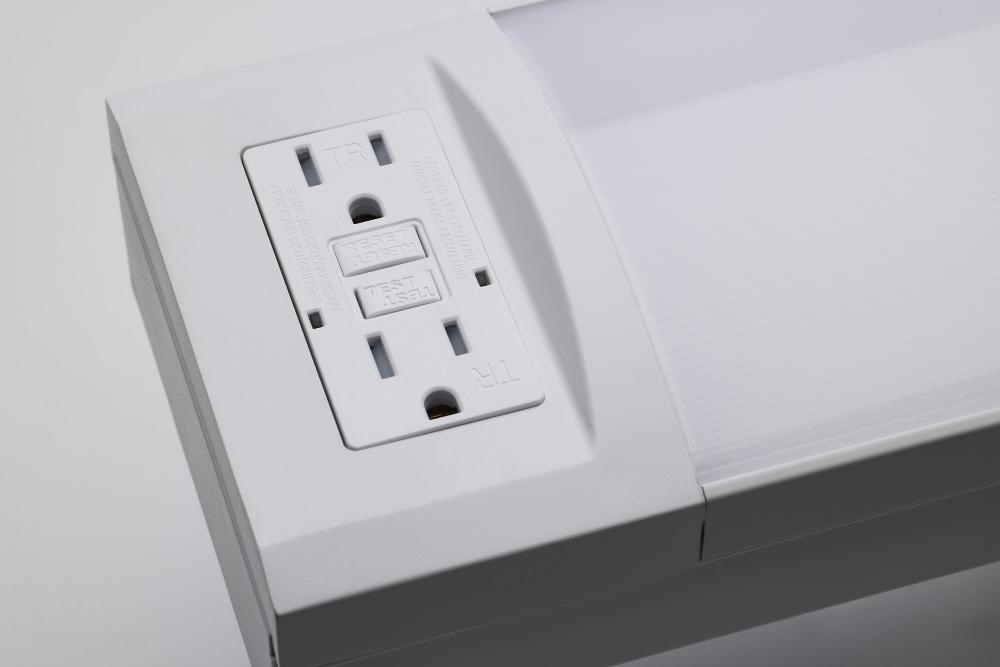

Tamper Resistant Dual GFCI
Feature 6:
Damp location rated
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Finish Family:
White
Indoor Outdoor:
Indoor
Installation Notes:

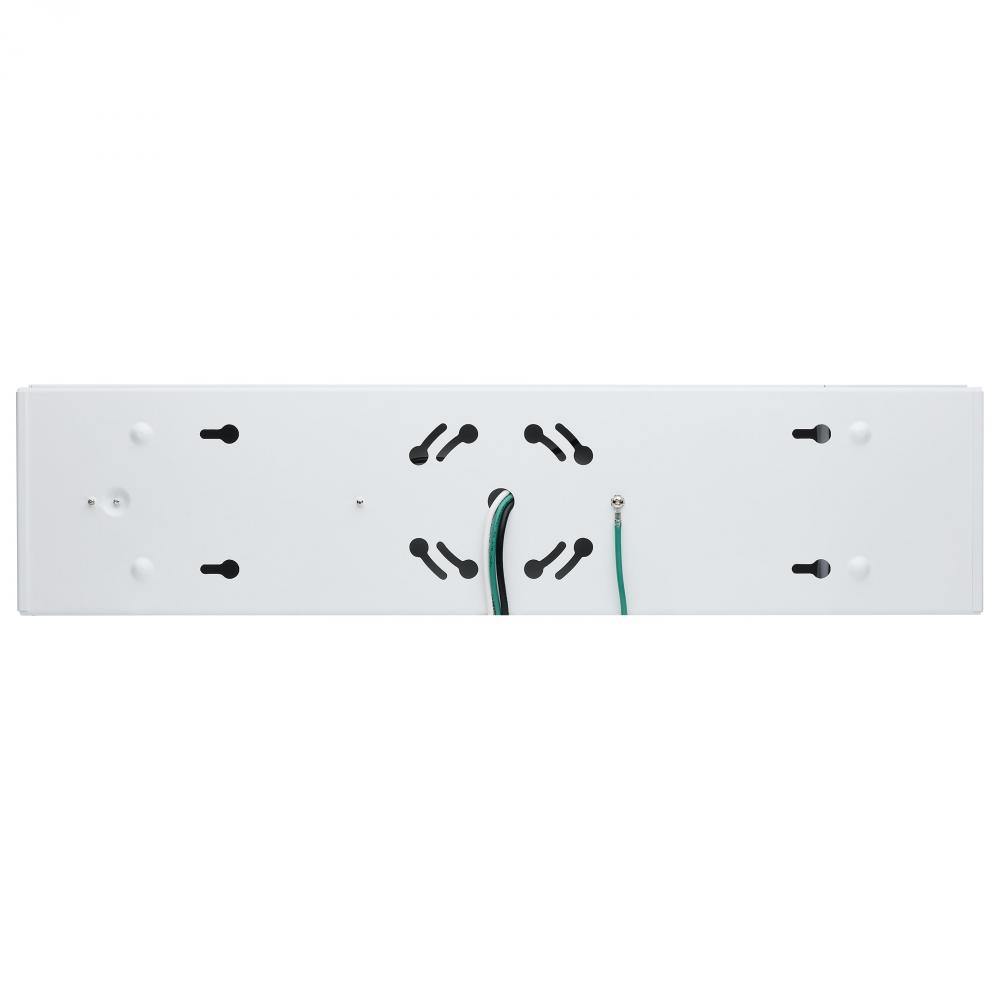

Standard 3-inch and 4-inch Keyhole Slots
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 18-inch LED Wrap Fixture delivers both illumination and power exactly where you need it. Perfect for workshops, apartment complexes, and multi-family dwellings, this fixture is ideal for areas where space is limited, and convenient power a
Material:
Steel
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
65
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 18-inch LED Wrap Fixture delivers both illumination and power exactly where you need it. Perfect for workshops, apartment complexes, and multi-family dwellings, this fixture is ideal for areas where space is limited, and convenient power a
Safety Listing:
cETLus
Short Description:
LED 18" WRAP WITH DUAL GFCIS
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<30%
Wattage Selectable:
No
Weight Lb.:
2.35
Wire Gauge:
14
